Product description
Washing separator VSV is designed for deflaking, final screening and washing of rejects coming from primary cleaners in waste paper processing lines. It runs periodically in programmable modes comprising following operations: irrigation, stock processing, deflaking, washing and reject discharge. It is not necessary to separate the washed reject, it is only thickened - e.g. in the vibrating screen VP-2-19.
Design
Washing separator VSV is standardly equipped with screen PAPSCREEN - patented by PAPCEL and delivered with bores of diameters of 1.8, 2.2 and 2.5 mm. Separators are based on similar design conception and particular types differ from each other in size of functional elements. Their following types complete an integrated family:
- VSV-10 - functional elements with diameter of 400 mm
- VSV-20 - functional elements with diameter of 500 mm
- VSV-30 - functional elements with diameter of 600 mm
Material
Main parts
- input chamber (1) only in sizes VSV-10, VSV-20, working chamber (2)
- machine unit: output chamber (3), sealed with filling stuffing box, functional elements: screen (4) wiped by vaned rotor (5); machine bedding (6)
- stand (7)
- V-belt drive with guard (8)
- electric motor
 |
 |
 |
 |
| VDT, VSV - input |
fluting: VDT, VSV - presorted stock |
fluting: VDT, VSV - presorted stock |
fluting: VSV-20 - reject from presorted stock |
 |
 |
 |
 |
| VDT, VSV - presorted stock |
VDT, VSV - presorted stock |
VDT, VSV - presorted stock |
VDT, VSV - accept |
 |
 |
|
 |
| duplex: VDT, VSV - presorted stock |
VSV-20 | VSV-20 - reject |
reject |
Advantages
- perfect washing of rejects
- automatic operation without demand on attendance
- easy maintenance
- low energy consumption
- reliability in service and durability also at processing of very coarse and impure stocks
Accessories
- pneumatic gate valves SP-DN1; -DN2; -DN3; -DN4 with pneumatic flap of wash water. Gate valves are controlled in programmable timing cycle.
Installation of screen PAPSCREEN provides following advantages, as compared with classical screen
- considerable increase of capacity
- improved deflaking efficiency
- higher screening quality through installation of screen with finer bores also for thick stocks
- longer service life of screen and rotor
Machine design and work safety are in compliance with EU standards.
Technical parameters
Dimensional sketch and technical parameters of machine typesExample of machine installation

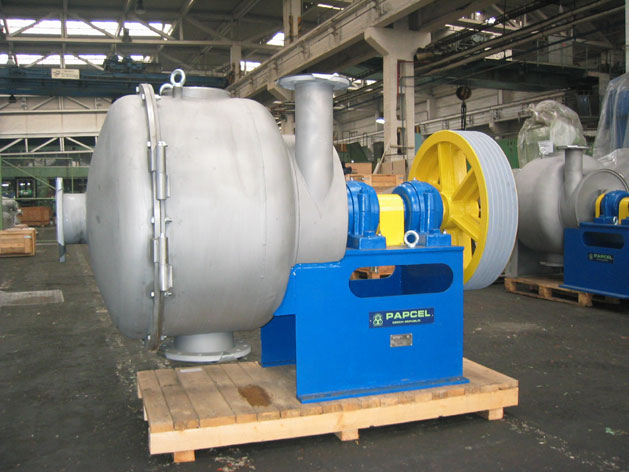

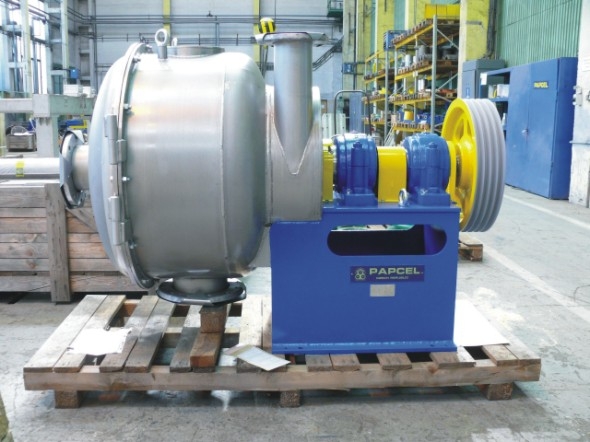

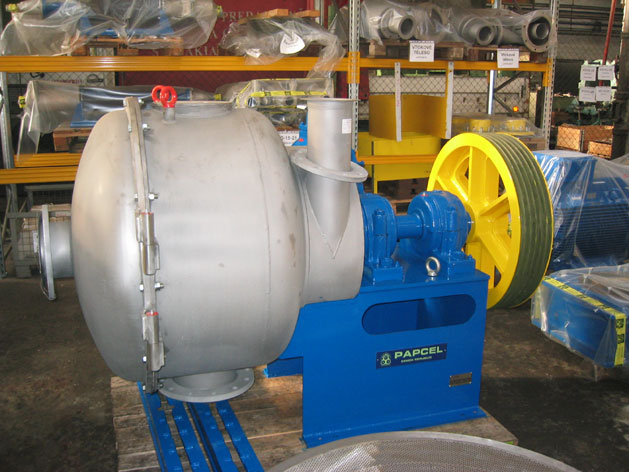

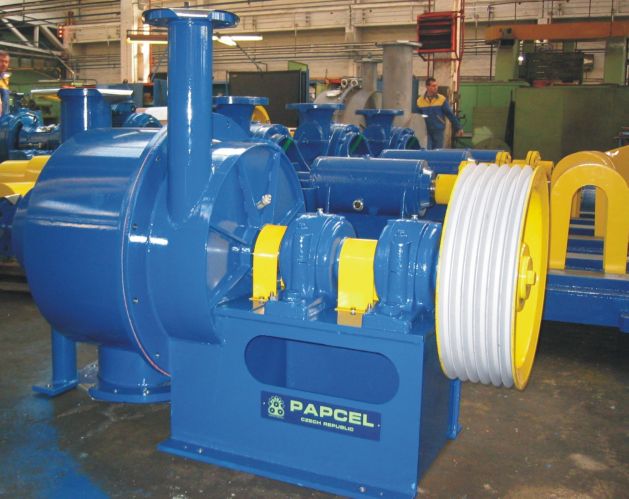

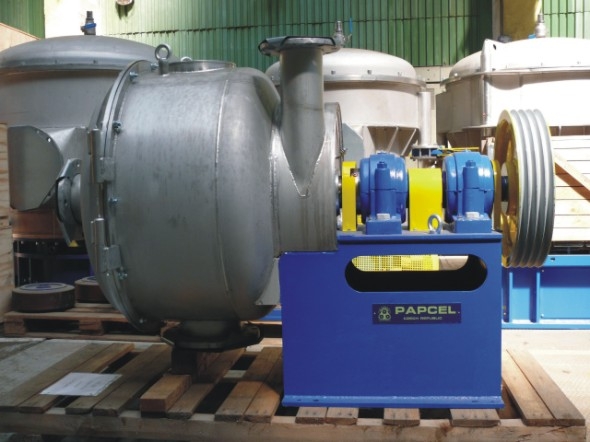

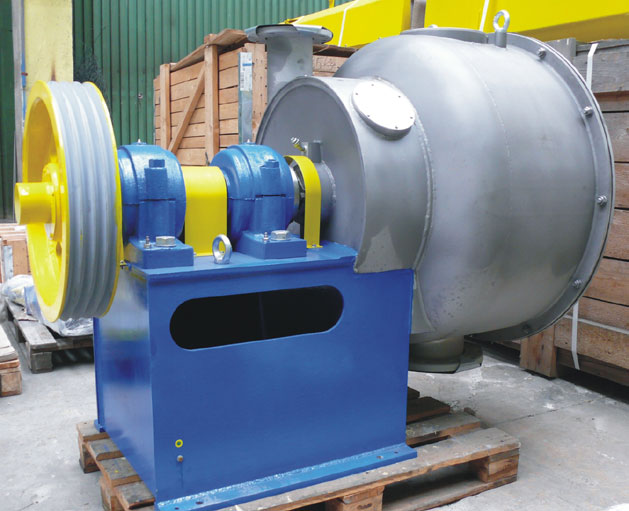

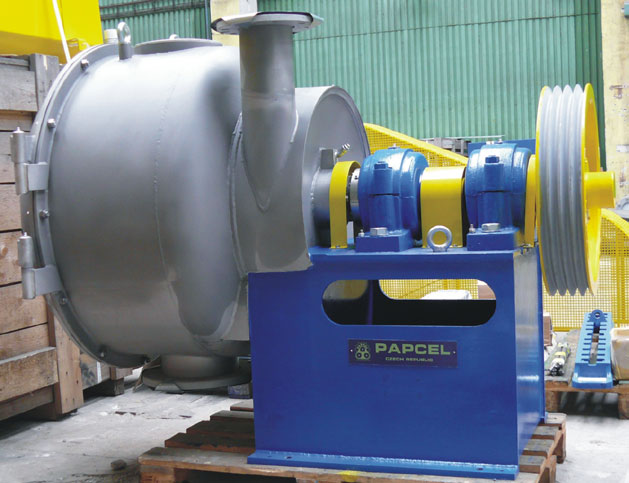

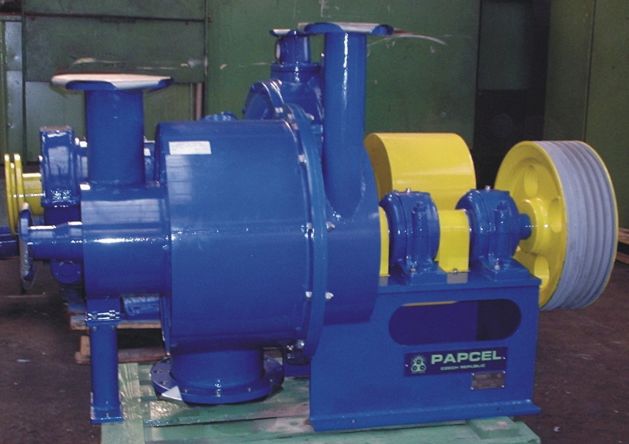

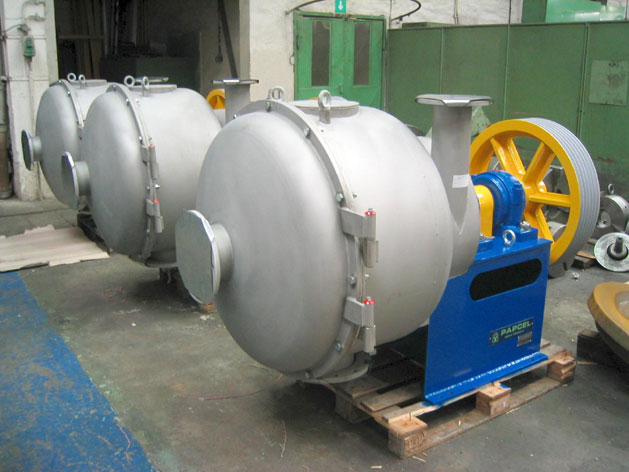

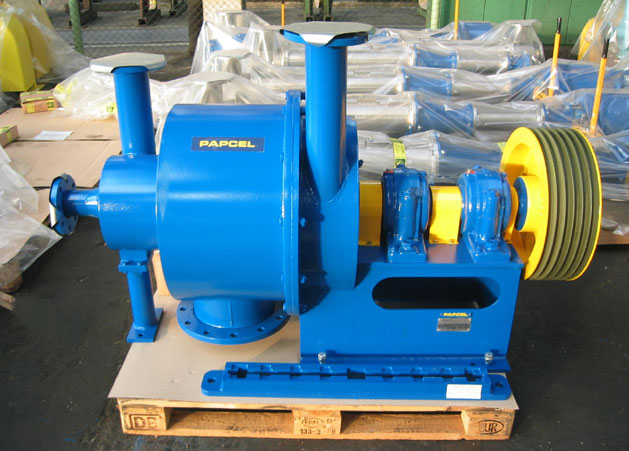

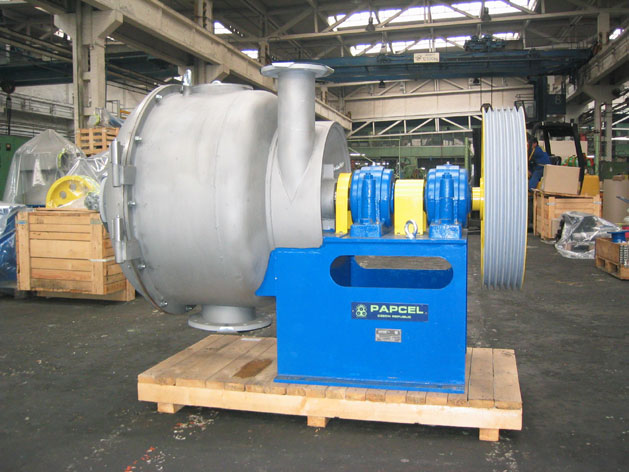

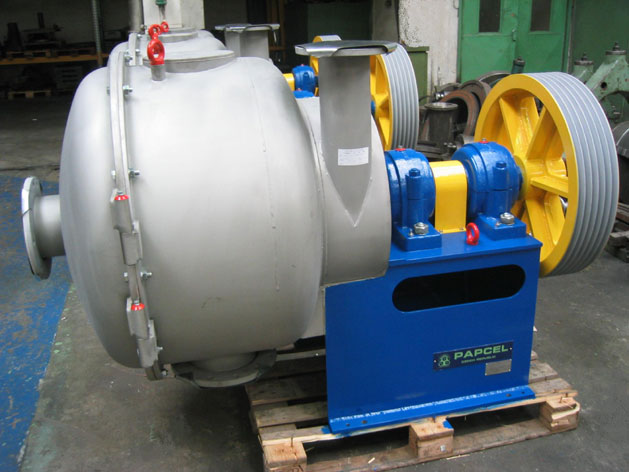

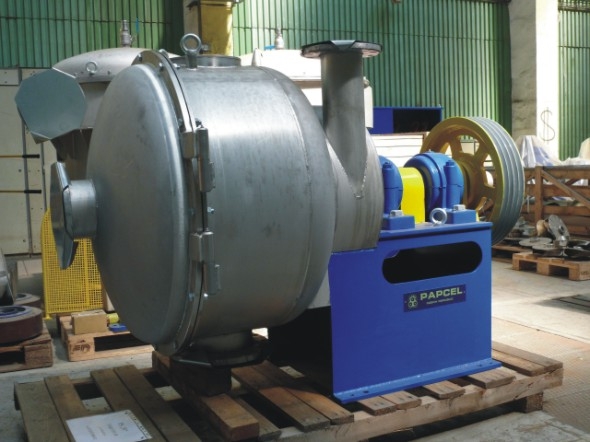

Photos
Type
