Year:
2009
Category:
New stock preparation line
Customer:
OOO MAYAK-TECHNOCELL, Penza
Country:
Russia
Product description
The delivery contract on type machines for stock preparation line included installation of this equipment:
SPL machinery:
- pulp belt conveyor 1.000 x 20.000 mm incl. weigh (WI)
- pulper LCV-30 (w = 12 mm), incl. electric motor
- broke pulper LCV-20 (w = 8 mm)
- couch chest with agitator
- 5 pcs deflaker 2D31 without garnitures
- 3 pcs disc deflaker D20-D
Pumps:
- pump A 42-200 (8; 15); 980 rpm; 55 kW
- pump A 32-80 (2; 30) + SIC; 1 460 rpm; 30 kW
- pump A 31-100 (3; 17); 1 460 rpm; 15 kW
- pump A 32- 25 (5; 25); 1 470 rpm; 45 kW
- pump A 22-65 (1; 15); 1 450 rpm; 11 kW
- pump A 32-100 (2,5; 28) + SIC; 1 470 rpm; 30 kW
- pump A 32-100 (2,5; 35); 1 470 rpm; 30 kW
- pump A 22-80 (1,5; 18); 1 450 rpm; 11 kW
- pump A 42-200 (8; 15); 980 rpm; 45 kW
Chests, tanks and agitators (stainless steel):
- level chest 1 m3
- mixing chest PC-80/5
- mixing chest PC-80/5
- mixing chest PC-30/3
- water tanks (10+2 m3)
- water tank 50 m3
- auxilliary dampening and air tanks c. 2 t
Delivery of M&R and ASCTP equipment:
- PI pressure indicator with manometer
- LIA level indicator with limit level signalling
- control valves for LICA: 2xDN150
- FIA induction flow meter for Krohne (also as FICA) DN40; 4x80; 3x100; 2x150; 1x200
- control valves for FIC: 1xDN80; 1x150; 1x200
- SIC frequency converter of revolutions regulation for motors 2x15; 2x30; 1x45; 1x160; 1x200 kW; 1x250 kW
- NIC consistency regulator for continual regulation BTG
- 4xMEK -control valve DN40; 1x65; 2xDN80
- WI weigh
- pneumatic gate valves (for stock): 1xDN 100; 1xDN 200; 1xDN 250
- pneumatic flap valves (for water): 2xDN 40; 3x200; 1x250
- valves with positioner
- ASCTP - control system with visualisation (JNS)
- power panels of the delivered equipment

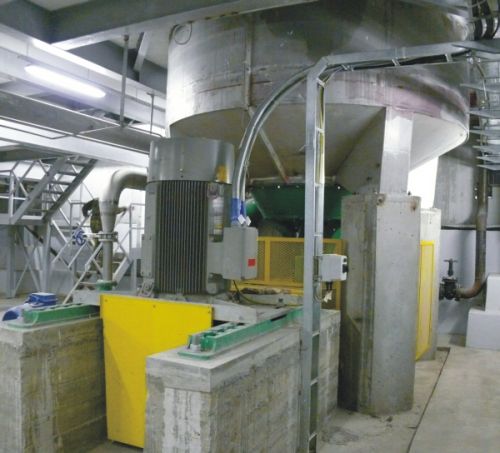

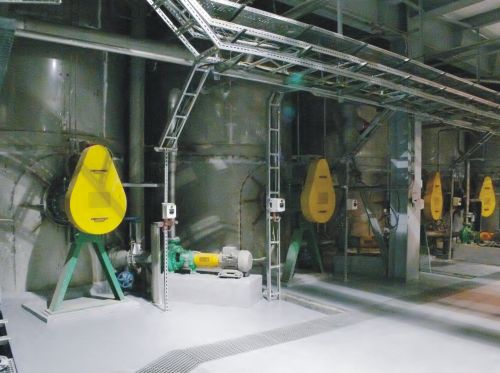

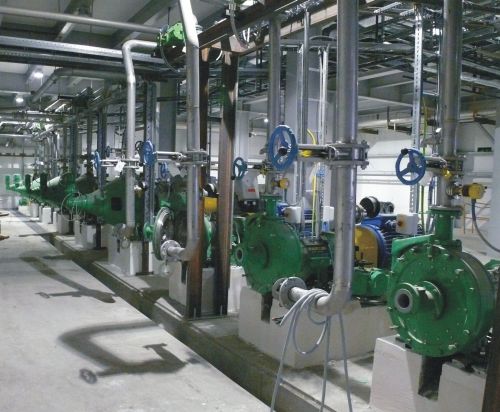

Photos
