Rewinder EG-2600

Year:
2009
Category:
Rewinder
Customer:
MODEL AG THURPAPIER, Weinfelden
Country:
Switzerland


Product description

Delivery of rewinder intended for fluting, liner 90 - 220 g/m2.

  • Unwindig diameter 2.200 mm, max. speed 2.000 m/min from reel spool diameter 385 mm, width 2.100 - 2.560 mm, resp. from expansion shaft. Brake generator Siemens. Delivery including stand with magazine of empty reels in front of rewinder.
  • Slitting section Dienes, tangential arrangement with 4 + 4 knives with automatic readjustment and own control unit S7-300 Simatic.
  • Core winding to diameter 100 mm (I.D.), min. roll diameter 500 mm, max. roll diameter 1.550 mm.
  • Driving unit Blumenbecker - Siemens. Delivery including service modem for servicing of drives.

Carried out at PAPCEL, a.s.: trial assembly of complete machine, functionality checks of particular groups, disassembly to minimized number of groups necessary for transportation in order to minimize assembly time on customer site.

Term of shipment: November 2008.

Term of start-up: January 2009.

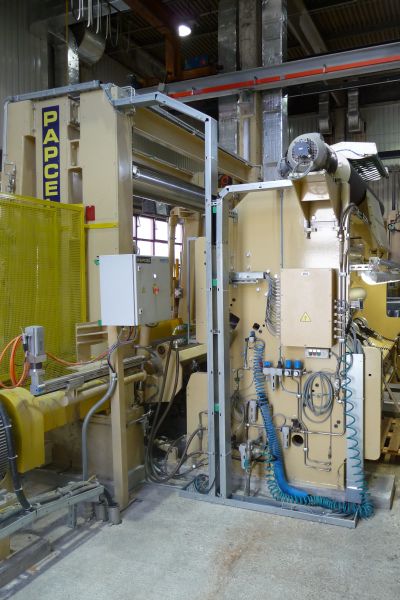

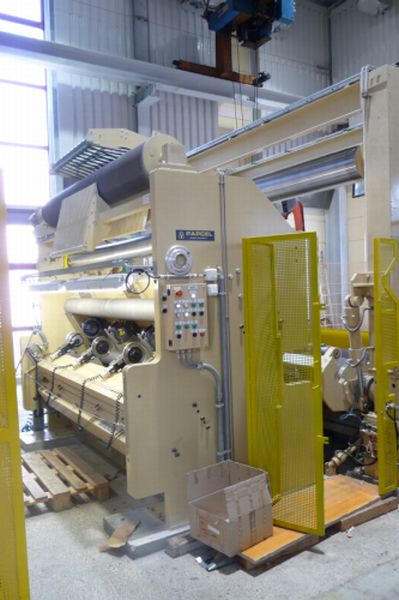

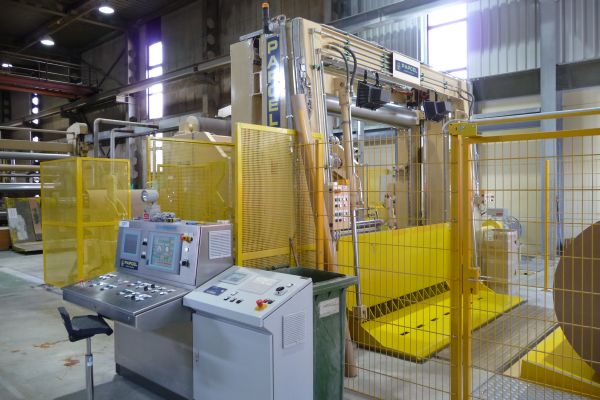

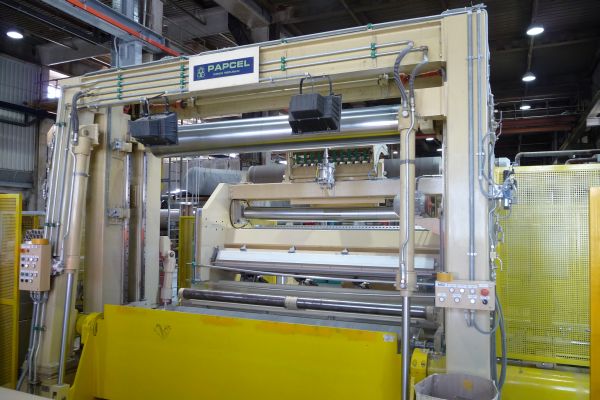

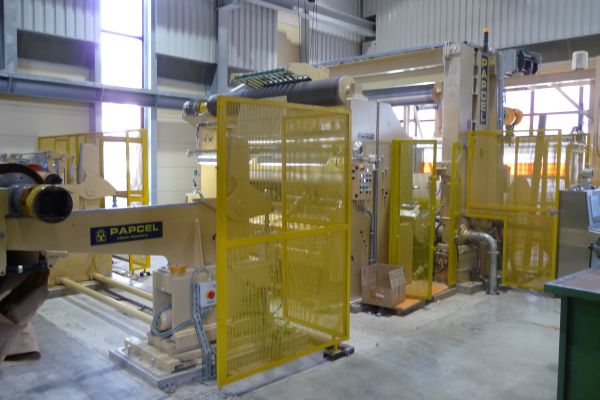

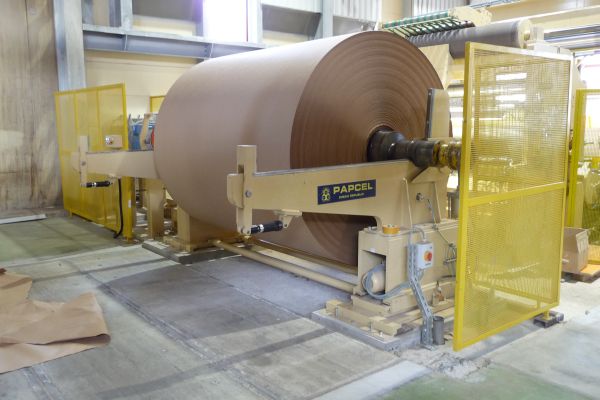

Photos
