Example of paper machine manufacturing fluting and liner grades
Reference parameters of the PM making liners and fluting
| Paper grade: |
fluting, liner |
| Basis weight: |
90 - 220 gsm |
| Paper width on reel: |
up to 6 000 mm |
Packaging grades structure
Fluting
Basis weight: 70 to 180 gsm
Number of plies: 1-2
Testliner
Basis weight: 90 to 350 gsm
Number of plies: 2-3
White top liner
Basis weight: 90 to 300 gsm
Number of plies: 2-3
Kraft liner
Basis weight: 125 to 400 gsm
Number of plies: 2-3

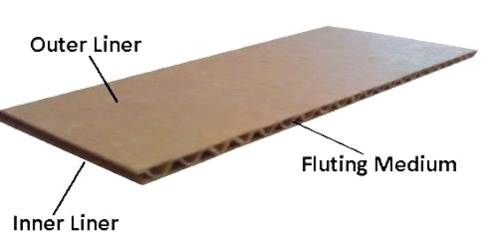

Fluting/liner structure

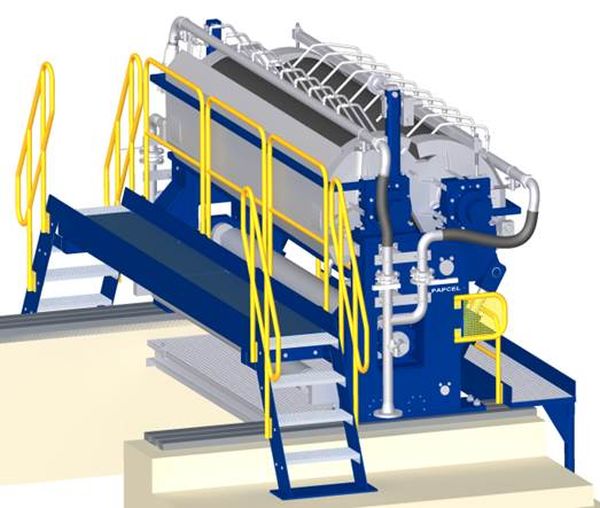

Headbox
- Even cross distribution
- Optimum turbulence
- Uniform web formation
- Cross profile control
- Pulsation dampening
3 headbox types:
1) Open headbox
2) Closed pressure headbox
3) Hydraulic headbox
Wire part
- Gradual web formation and dewatering
- Good interlayer bonding
- Wire guiding and stretching
- Wire cleaning
- Quick wire exchange
Dewatering elements
- Hydrofoil boxes
- Vacuum-foil boxes
- Vacuum boxes
- Drainage elements tops - ceramic (above 500 m/min.)
Top Former
- Dewatering and quality improvement by means of Top Former

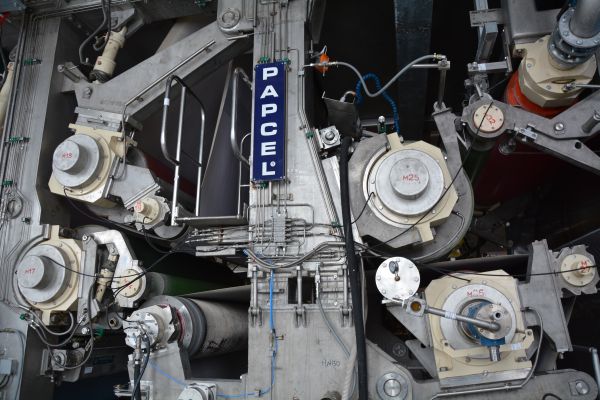

Press part
- Efficient dewatering
- Maximum runnability
- Felt guiding and stretching
- Felt cleaning
- Quick felt exchange

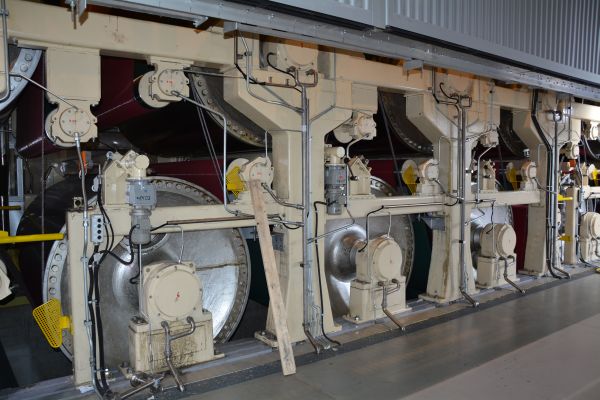

Drying part
- Efficient paper web drying
- Energy efficient solutions
- Easy threading
- Guiding and stretching
Sizing

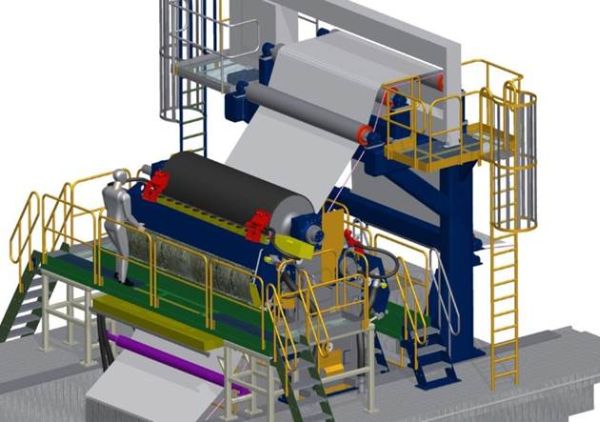

Size press
Accessories
- Sectional drives
- Threading system
- DCS & QCS
- Control system
- Hydraulic and pneumatic systems
- Hood and ventilation system
- Steam and condensate system
