Second-hand PM - 1.9 m

Číslo položky:
17
Sortiment:
Wrapping recycled papers, colored boards
Šíře síta:
1900 mm
Rychlost:
200 m/min
Umístnění:
Evropa
Kategorie:
Complete plant & machinery



Grade: wrapping recycled papers, wrapping wood-free papers,
colored boards
Basis weight range: 60 - 400 gsm
Type of machinery: Fourdrinier / single forming section (one layer sheet structure)
Manufacturers: Voith for stock preparation system / Voith, Metso, Freiria for PM
Production: 55 TPD
Maximum operating speed: 200 mpm
Wire width: 2.050 mm
Paper width at reel: 1.900 mm
Composed of (2) Yankee Dryers

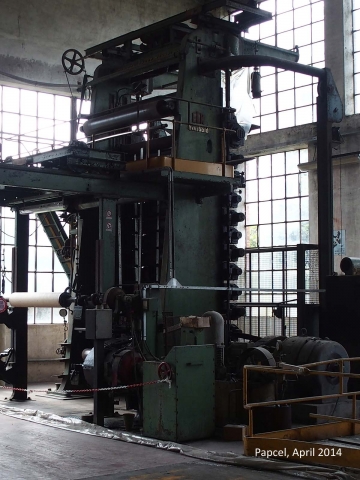

(3.600 / 2.500 mm) and smoothing dual nip calender

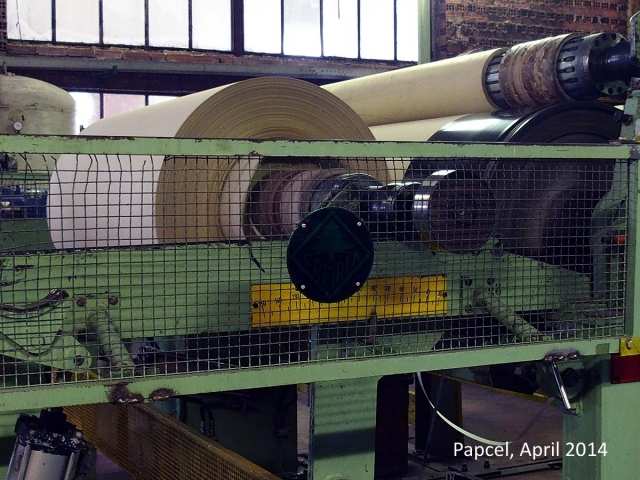

Completed of rewinder and sheeter
Current status: still on operation
The company is entering into voluntary liquidation
Technical specification and pictures available upon request
Technical inspections welcomed upon prior consent of the Seller

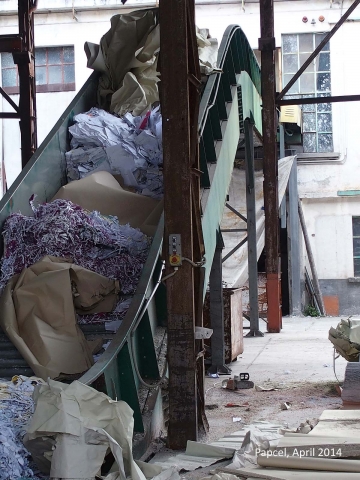

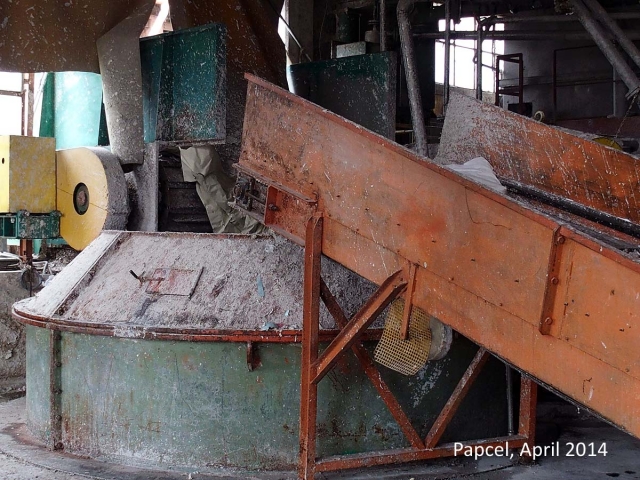

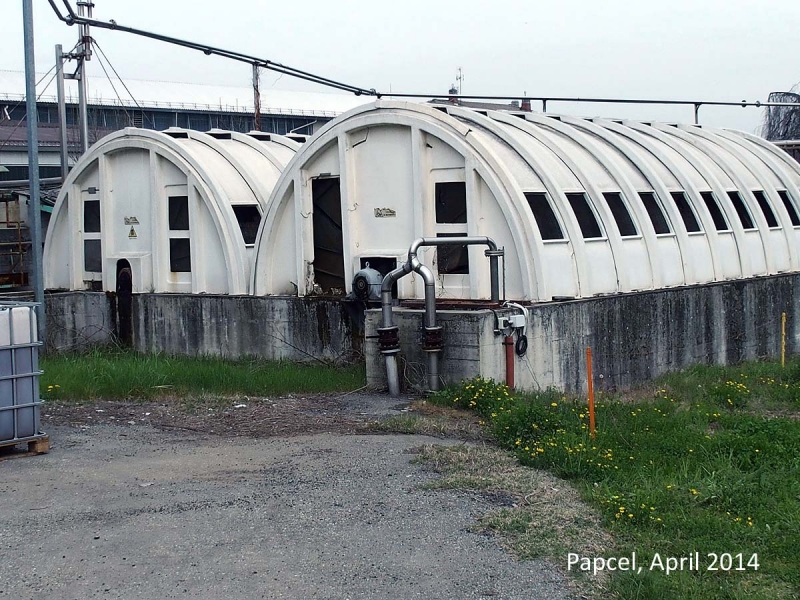

Stock preparation system

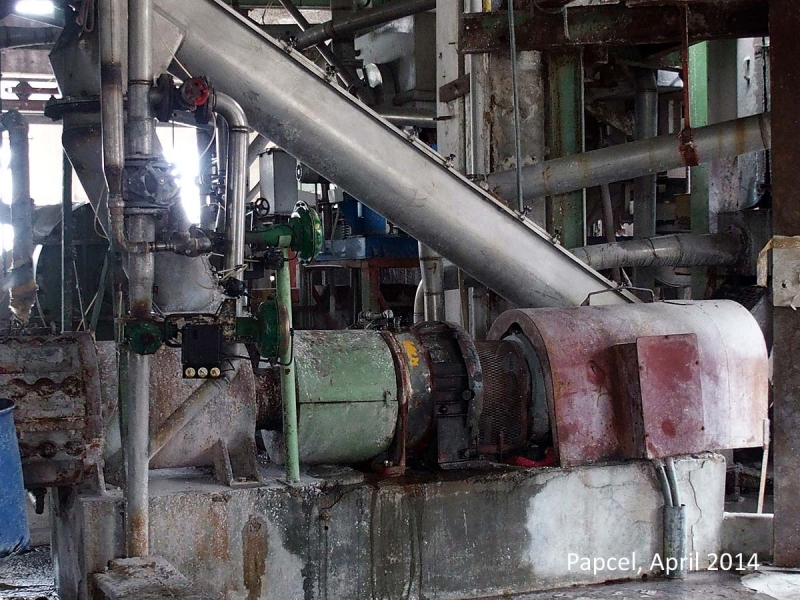

Approach flow system

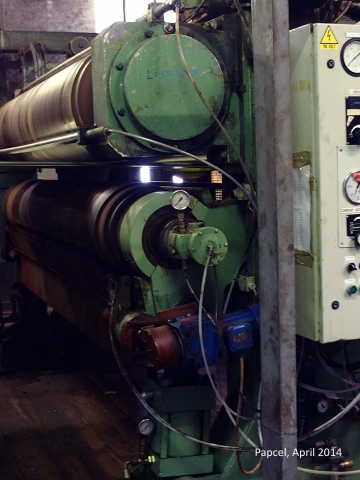

PM front view A

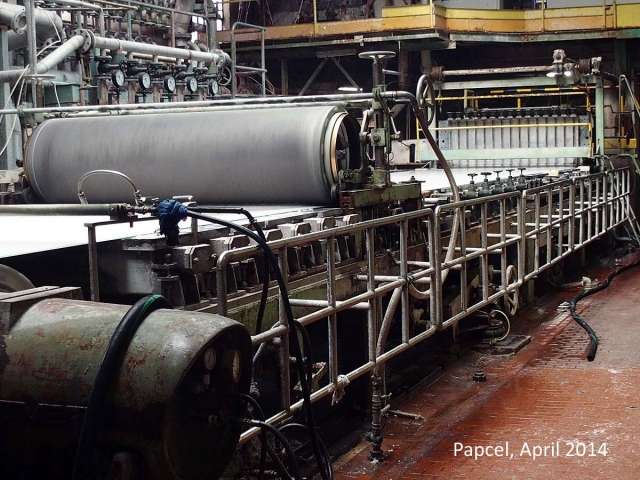

PM front view B
PM front view C
Technical specification
