Second-hand PM - 2.6 m

Číslo položky:
23
Sortiment:
Coated board
Šíře síta:
2600 mm
Rychlost:
300 m/min
Umístnění:
Evropa
Kategorie:
Complete plant & machinery



Paper grade: Coated Board
Basis weight range: 200 - 700 gsm
Width of paper at reel: 2.600 mm
Maximum speed of: 300 mpm
Production:  250 TPD maximum
Raw material: mixed waste paper

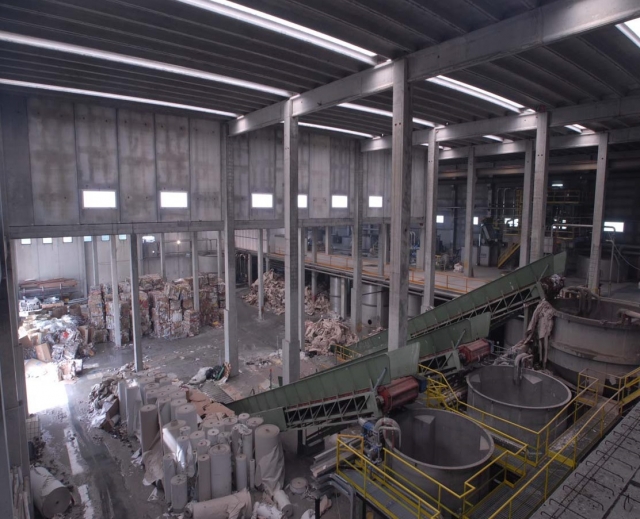

Completed of stock preparation plant

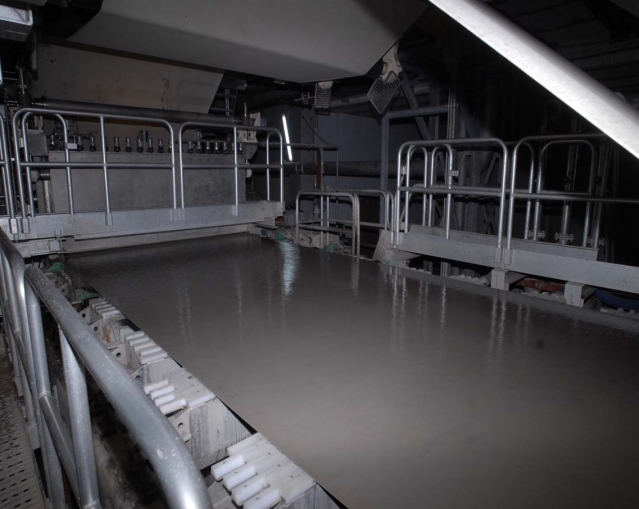

Forming section: 6 Vat Formers (1 for top, 5 middle, 1 bottom)
Press part: 3 presses (Jumbo press)

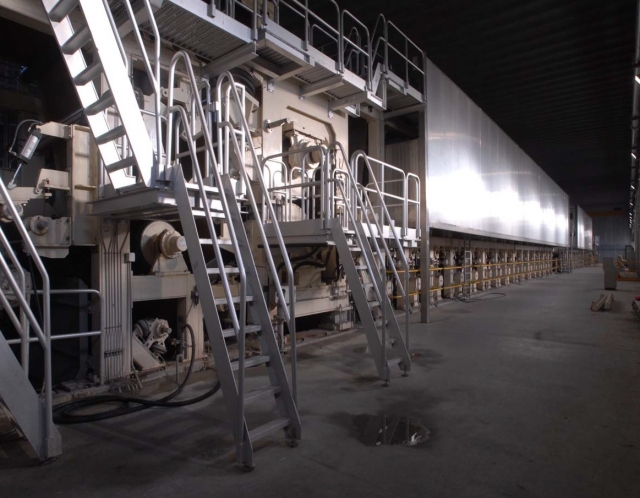

Drying part: 5 sections with 10 cylinders (5 bar)
Coating unit

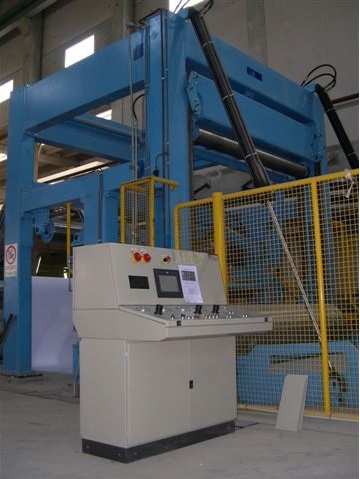

Winder: width 2.500 mm, max. wound diameter 1.500 mm
Status of the machinery: completely assembled
Status of the mill: closed, voluntary liquidation
Technical specification: available upon request
Visits and technical inspections welcomed prior written consent

Machine drawing drying part
Machine drawing pope reel
Machine drawing press part
Machine drawing vat formers
Machine drawing wire section
