| Manufacturer: | ECK-HAUBOLD |
| Year of installation at mill: | 1962 |
| Status of the machinery: | Completely assembled and serviced (no missing parts) |

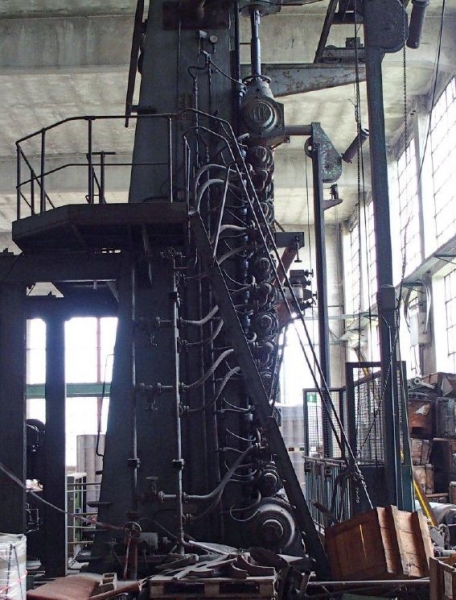

| Type of machinery: | Off-line Super-calender (multi-nip roll calender) |
| Paper grade: | High quality mono-layer board and wrapping papers |
| Basis weight range: | 60 - 400 gsm |
| Raw material: | Selected waste paper and cellulose |
| Operating speed: | 200 mpm |
| Size (roll's board): | 2.400 mm |
| Number of rolls: | 14 pcs |
| Unwind roll diameter (from PM reel): | 1.500 mm |
| Reel spools diameter: | 190 mm |
| Linear pressure: | 450 kN/m |
| Drive: | DC WLDS, pirme mover AC 140 kW 4 poles, DC generator |
| DC motor: | 18.5 - 185 kW @ 140 - 1.400 rpm |
| Drive of unwind and rewind section: | mechanical |
| Loading system: | hydraulic |
| Brake type: | mechanical |
| Heating medium for cast iron rolls: | Steam |
| Lubrication system: | Forcedo oil lubrication |
| Spare parts: | Elastic paper filled roll, bearings |
